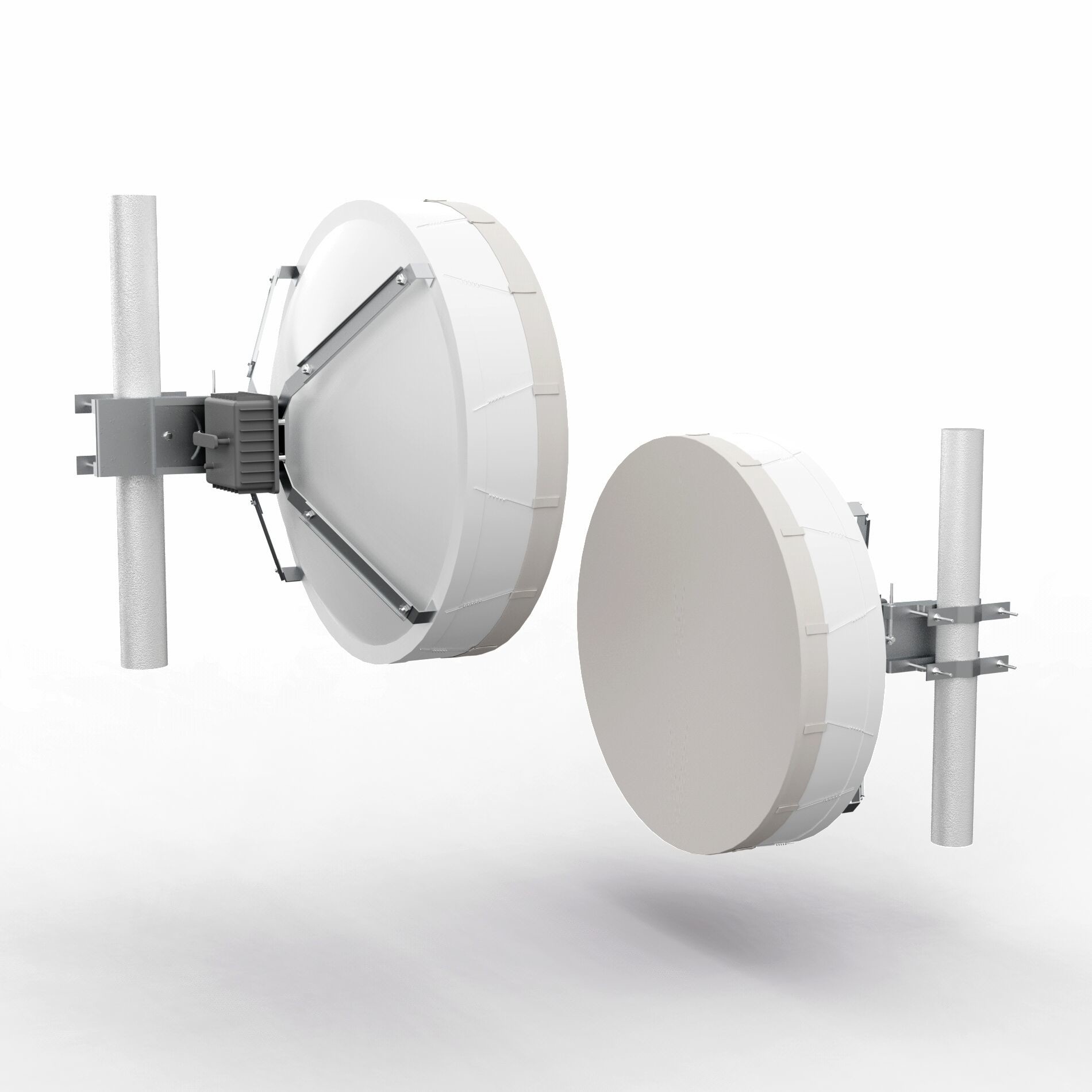

The Microwave Parabolic Antenna stands as a pinnacle in wireless communication technology, renowned for its precision engineering and unparalleled performance in long-range connectivity. Let's delve into the key features that make this antenna a cornerstone in modern communication networks.
1. High-Gain Design:
With its parabolic reflector, this antenna achieves exceptional gain, amplifying signals for extended coverage and improved signal strength. The high-gain design ensures reliable communication even over vast distances, making it ideal for point-to-point links and satellite communication.
2. Focused Signal Transmission:
The parabolic shape of the antenna enables precise beam focusing, directing signals with accuracy and reducing signal dispersion. This focused transmission enhances signal clarity and minimizes interference, ensuring robust and uninterrupted communication.
3. Broadband Capability:
Designed to operate across a wide frequency range, the Microwave Parabolic Antenna offers broadband capability, catering to diverse communication needs. Whether for voice, data, or video transmission, this antenna delivers consistent performance across various applications.
Features:
- Stable gain over ultra-wide bandwidth
- Comes pre-assembled from the factory for quickest time to tower
- Includes radome ensuring robust and reliable performance under the most challenging condition
- Optimized F/B & side-lobe suppression minimizes interference
- Installs in minutes to reduce service calls and installation time

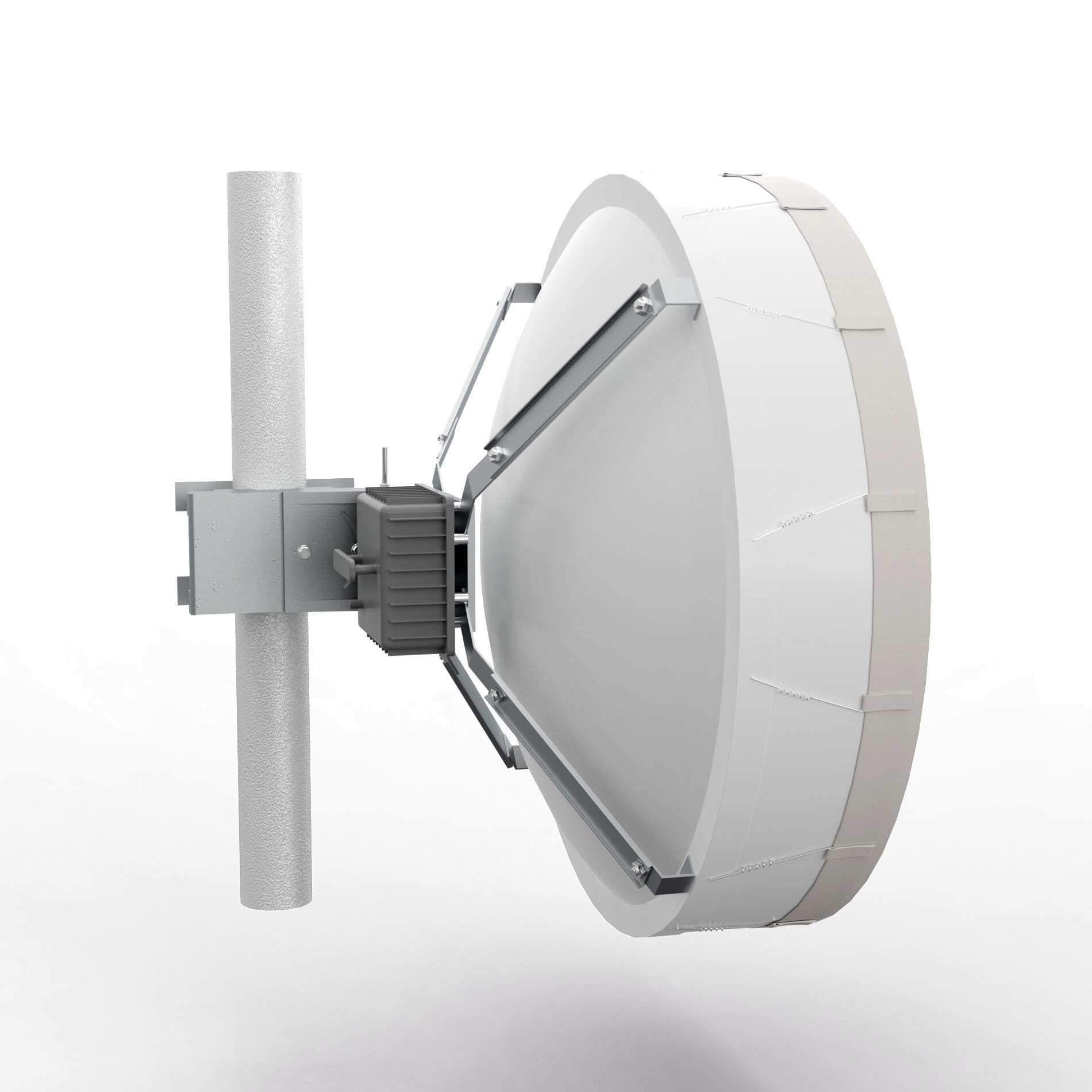

- Heavy-duty bracket with fine elevation and azimuth adjustment
- Heavy-duty hardware survives 250Km/h wind speeds
Electrical performance:
| Antenna Model | Antenna Size(m) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO |
| Low | Mid | Top |
| CM09U6WD | 0.9 | 5.925-7.125 | 32.7 | 33.5 | 34.3 | 3.6 | 30 | 1.3 | 58 | 35 |
| CM09U7WD | 0.9 | 7.125-8.5 | 34.3 | 35.1 | 35.8 | 2.8 | 30 | 1.3 | 59 | 35 |
| CM09U10WD | 0.9 | 10.125-11.7 | 37.0 | 38.0 | 38.6 | 2.0 | 30 | 1.3 | 63 | 35 |
| CM09U13D | 0.9 | 12.75-13.25 | 39.3 | 39.5 | 39.7 | 1.7 | 30 | 1.3 | 64 | 35 |
| CM09U15D | 0.9 | 14.4-15.35 | 40.4 | 40.7 | 41 | 1.5 | 30 | 1.3 | 59 | 35 |
| CM09U18D | 0.9 | 17.7-19.7 | 42.2 | 42.7 | 43.1 | 1.2 | 30 | 1.3 | 68 | 35 |
| CM09U23D | 0.9 | 21.2-23.6 | 43.7 | 44.2 | 41.1 | 1.0 | 30 | 1.3 | 69 | 35 |
| CM09U26D | 0.9 | 24.2-26.5 | 44.9 | 45.3 | 45.7 | 0.9 | 30 | 1.3 | 70 | 35 |
Mechanical performance:
| Diameter of Mounting Pole | Φ114 mm |
| Fine Azimuth Adjustment | Coarse 360° Fine ±15° |
| Fine Elevation Adjustment | Fine ±10° |
| Wind Velocity Operational | 162km/h |
| Wind Velocity Survival Rating | 250km/h |
| Ice-load | 25.4 mm |
| Operational Temperature | -45℃~ +65℃ |
1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;
2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
